pcb表面處理方法有哪些，pcb表面處理工藝有幾種方法？
Printed circuit boards (PCBs) are an essential component in electronic devices, providing a platform for electric components to be connected and arranged. The surface finish of PCBs is critical to ensure component reliability, usability, and longevity. There are various PCB surface finish methods and processes that can be used to enhance the performance and reliability of PCBs. In this article, we will explore the various PCB surface treatment techniques, including the benefits and limitations of each method.

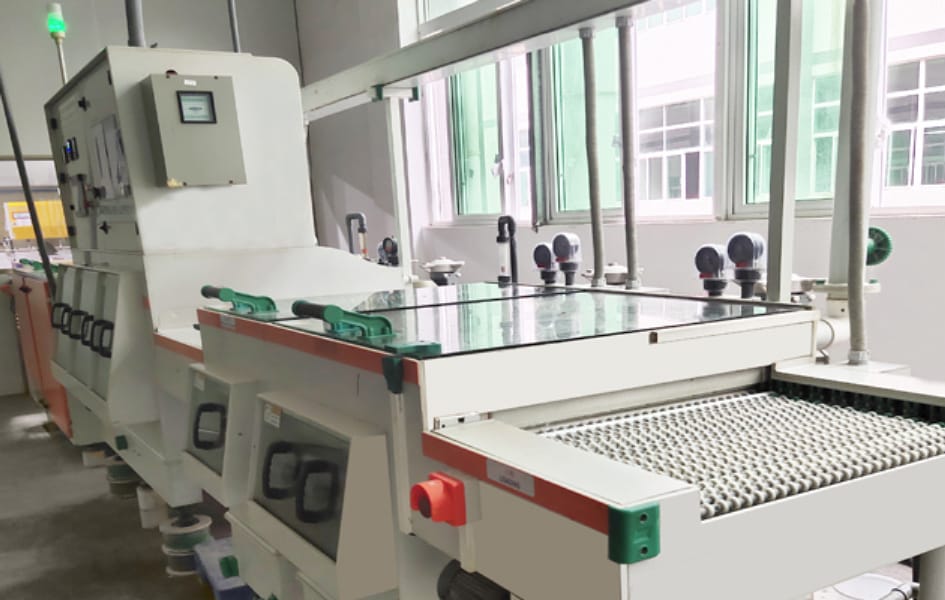

PCB Surface Treatment Methods:
PCB surface treatment methods are used to increase the surface area of the board, allowing for the placement of more components without increasing the board’s size. Furthermore, it ensures that components stay in place, are electrically and thermally conductive, and do not corrode.
1. Hot Air Solder Leveling (HASL)
HASL is the most widely used surface finish method, which consists of placing the board in a molten solder bath and then removing the excess solder with a high-velocity hot air knife. The HASL process is quick, robust, and cost-effective, making it an industry standard. However, HASL is not suitable for fine-pitch components, as it can leave solder bridges.
2. Immersion Tin (IST)
IST is a simpler and more cost-effective method than other finishes, and it involves immersing the PCB in a tin solution, creating a thin layer of tin over the copper surface. IST is suitable for fine-pitch surface mount devices and is known for its flat surface finish. However, its short shelf life, sensitivity to handling issues, and poor solderability can lead to concerns.
3. Immersion Silver
Immersion silver is another suitable method for fine pitch surface mount components as it provides a uniform surface finish. The silver plating process ensures that the PCB withstands high-temperature processes while maintaining excellent solderability. However, immersion silver requires additional sintering processes to remove moisture absorbed, and it tends to darken over time, becoming more challenging to inspect.
4. Electroless Nickel Immersion Gold (ENIG)
ENIG is the most popular and technically advanced surface finish, combining nickel and gold plating to provide a durable, reliable, and uniform surface for PCBs. This method ensures a high level of corrosion resistance, with excellent solderability, making it suitable for a broad range of applications. Nevertheless, it can be expensive and challenging to manufacture, and ENIGs are known for their porosity, which can lead to issues with electrical signal integrity.
5. OSP (Organic Solderability Preservatives)
The OSP method involves depositing a protective organic layer over the copper surface of the PCB. The purpose of the OSP layer is to prevent the formation of copper oxide and preserve the solderability of the copper pads. OSP coatings are environmentally friendly, eliminate heavy metals and can provide an excellent flat surface finish for fine-pitch components. However, they are limited regarding durability and shelf life, and it is essential to handle them with care to maintain their effectiveness.
Conclusion:
There are numerous PCB surface treatment methods and processes that can be used to enhance the performance and reliability of PCBs, from HASL to OSP. Each has its benefits and limitations, and it is up to the designer and manufacturer to decide which method is suitable for their application. In making an informed decision, the designer must weigh performance requirements, environmental considerations, manufacturability, and cost-effectiveness.
